Ultra video to vga RGBHV converter Triple-level video scaler w/output 1024x768 xga 1280x1024 sxga 1366x768 wxga for CRT/LCD computer monitor,projector,LCD/TFT flat panel,
Plasma/LCD TV,HDTV monitor,home theater system or any other VGA display.
The must-have item for the best of your home
video entertainment. This ultra video to VGA/RGBHV converter allows you to
watch videos at high resolution on a computer monitor, projector, LCD/TFT flat
panel, Plasma/LCD TV, HDTV monitor, home theater system or any other VGA
display. It accepts both composite video & s-video inputs plugged in at the same time and
outputs at 3 selectable high resolution VGA signals with sharp & crystal
clear images for
sensational visual experiences compared with using conventional analog TV
set for displays.

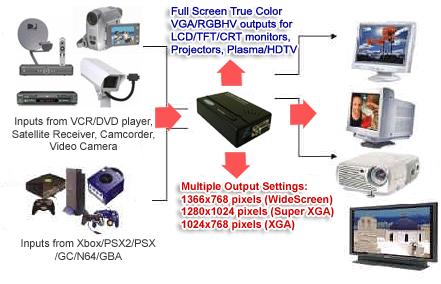

Simply
connect your video sources like DVD/VCR player,
camcorder, video game console, satellite receiver or video camera
to this converter's A/V and s-video inputs and then connect the VGA out of this
converter to the VGA RGB input of your display. You can click the video source
selection button on the converter for selecting video games, DVD movies or any other
video feeds to be displayed.
True Color Output with Sharper &
Brighter Images
This unit is a perfect
video
line doubler solution for converting interlaced video into progressive scan
type for users to enjoy supreme
high definition
output up to 1366x768 pixels (WXGA)
for widescreen output or 1280x1024 pixels (SXGA)
for standard 4:3 output with vivid color on the screen.
Automatic Color
Adjustment
The built-in video processor provides
automatic adjustments on all color elements including contrast, brightness, color and tint ratio for the
output so users do not need to fuss with manual selection and can always expect
the optimal performance.

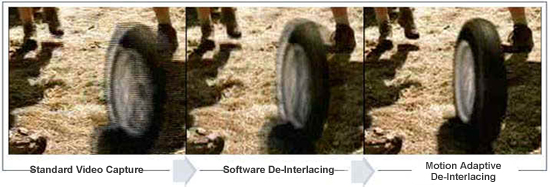

3D Motion Adaptive
De-interlacing
With the motion adaptive de-interlacing technology, this unit easily converts
the interlaced TV video signals into progressive ones (scanned every line in
sequential order), resulting in much less
flickering.
This unit also adopts a variety of new technologies
including 3D Y/C
separation comb filter, 3D (frame based) motion
adaptive YNR/CNR noise
reduction, Automatic 3:2 and 2:2
pulldown conversion for film and graphic mode, gamma correction, non-linear scaling, luminance/color transient
improvement, and sharpness enhancement for the sharp, clear, saturated 3D video.
Multiple Input Connections
This converter box offers S-Video input and composite video
input, meaning no more unplugging or
switching cables between your video devices. Just one click button away !
NTSC/PAL
Video System
This unit supports both
NTSC & PAL systems with automatic frame rate conversion for best video performance.

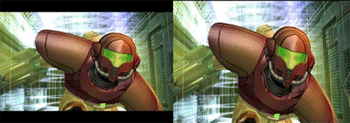

Always Full Screen Display
You can always count on this
converter to give you the true full- screen video games and movie videos on
your VGA display. Users can always enjoy full-screen video displays
converted by this unit on any standard 4:3 display or 16:9 widescreen
display. No manual adjustments
needed. No more cut-off or drop-off on the video frames.
Guaranteed To Convert All
Analog Videos
This unit is the only unit in the market that
can support a wide frequency range of 15.75~48.63 Khz. Most of
the VGA converters support 31.5 KHz frequency. Why is this import to you ?
- If a video converter does
not support frequency
ranges 37.5~45.0kHz, it cannot
convert many Xbox games for VGA displays.

- If
a converter doesn't cover 15.75~28.15kHz
range, it can not convert older 8-bit
video games for VGA/RGB displays.
- With
a wide frequency range support,
this unit is the only one to guarantee converting all video signals. Yes, we
mean ALL Video Signals !
100% hardware operation
No computer is needed for its
operations. True plug and play without driver and software
installation needed. Easy cable installation.
Cost saving
By using your PC/Mac monitor
or projector as an extra
TV screen with
higher-resolution display. Computer monitors/projector have much higher
resolutions than the traditional analog TV units. The viewing result is
even better with a LCD monitor. And you save space and money, and it
looks great.

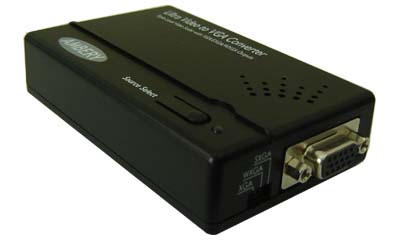

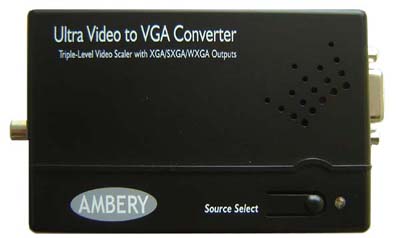

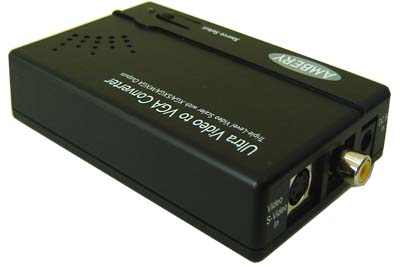

Stylish and Compact design
With Palm size design to save your space and easy to be portable use for gamers.
 |
 |

- Converts all analog
interlaced video signals into progressive scan types in RGBHV/VGA signals.
- Easy source selection - switch between A/V & S-video input with just a push of a button.
- Automatic color adjustment.
- Excellent video upscaler with
supreme high video definition output up to WXGA
1366x768 pixels for displays.
- Guaranteed to be compatible
with all video game consoles. This
universal video to VGA converter can let you hook up and play any video game
consoles (like Xbox, PSX/PSX2, GC, DC , etc.) onto any
computer monitors thru this unit for real-time play.
- Motion adaptive 3D Y/C
separation comb filter built in.
- 3D (frame based) motion
adaptive YNR/CNR noise
reduction circuit
built in.
- 3D
Motion Adaptive de-interlace. This unit adapts the
de-interlacing technology to minimize jagged edges on angled lines for
sharper and more stable image output to VGA displays like LCD monitor, LCD
projector or HDTV monitor.
- Automatic 3:2 and 2:2
pulldown conversion for film and graphic mode.
- Always-Full-Screen
output. Fully
support 16:9 expansion
for large-screen Plasma panel and HDTV display and 4:3 ratio for standard
projection or VGA screen displays as well.
- Support video security surveillance monitoring with
all CCTV or other video camera systems.
- Automatic NTSC/PAL system
detection
- Universal AC/DC Power Supply (100V
- 240V) for worldwide power use.
- Compact design suitable
for saving space and portable use.

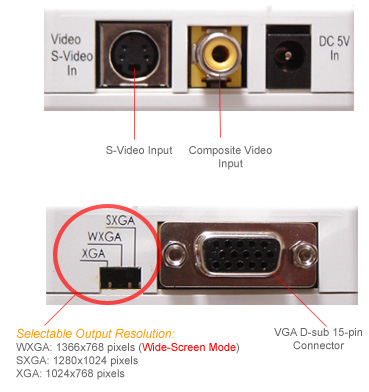

Inputs
- S-Video connector
- Composite RCA video connector
Outputs
- VGA D-sub 15-pin connector
Proprietary Scan Rate Conversion Engine
- 3D Motion Detection
- Motion adaptive de-interlacing
- Automatic 3:2 and 2:2
pulldown conversion for film and graphic mode.
- Adaptive scan rate conversion
- 3D (frame based)
motion adaptive YNR/CNR noise reduction circuit built in.
Automatic Color Processing
- Built-in Color Space Converter
- Auto Gamma correction for different
color temperature and contract
- Digital brightness, saturation and hue
color controls
|
Triple-Level
Video Resolution Scaling
- WXGA 1366x768 pixels (recommend for
widescreen display only)
- SXGA 1280x1024 pixels
- XGA 1024x768 pixels
Advanced
Video Enhancement Processor
- Non-linear 16:9 expansion
- Automatic sharpness and peaking
enhancement
- Color transient improvement
- Black level expander to enhance contrast
- Background coloring
Universal Power Adapter
- Input: 100V - 240V 50/60 Hz
- Output: 5V DC - 1A
|

- Triple-leve video converter/scaler unit
- Universal AC/DC Power Supply (100V -
240V 50/60 Hz)
- Operation manual

|
