HDMI LPCM Multi-Channel Audio Decoder With Amplifier

This innovative 2-in-1 HDMI audio decoder with built-in amplifier enables you to connect full digital video and audio output from the new HDMI media source like Blue-ray DVD player or Play Station 3 to any HDTV, AV receiver, stereo amplifier or preamp for the supreme visual experience with the best sonic quality.

This HDMI digital to analog audio converter supports decoding uncompressed digital LPCM 7.1, 5.1 or 2 channels and passing the compressed digital Bitstream (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) through HDMI input and output ports.

This device is also able to provide ultra high amplifier bandwidth up to 225MHz to ensure that the output from any HDMI source will be carried through with the same sharp detailed images and  the original high definition audio sound quality to be maintained all the way to the display or receiver end.

No costly upgrade needed for your existing non-HDMI receiver or stereo system. This DAC unit provides a premium external DAC solution for integrating the new HDMI-based AV equipment into receivers or home theater systems that are not equipped with digital audio decoder through using the multi-channel cable or fiber optic cable connection to enjoy the complete digital sonic presentation as intended by the content creator while watching the HD video on big flat panel TV at the same time.

LPCM Digital Audio Decoder
This HDMI audio converter decodes the embedded LPCM digital audio from the HDMI output from PS3, Blue-ray, HD DVD player, HD cable box, DTV and so on into multi-channel surround sound in analog format for older non-HDMI home AV receiver, preamp or amplifier equipments.

User can fully enjoy the original digital audio content with all sonic details that the studio originally made for the HD movie. The decoded analog audio output from this device produces an accurate duplicate of sound which is bit-for-bit identical to the studio master, so listening at home is the ultimate home cinema experience.

This innovative HDMI digital audio converter can deliver high-quality digital audio with 7.1 and 5.1 discrete channels (Front Left, Front Right, Center, Rear Left, Rear Right, Left surround/Right surround and Low-Frequency Effects) to deliver a directional and more realistic effect. With the new lossless technology from Dolby TrueHD or DTS-HD Master Audio, the listener hears exactly what was captured during the recording and mastering process.

This HDMI audio converter also supports all 2-Channel PCM audio, compressed bitstream audio like Dolby Digital AC-3, DTS, DTS 5.1/7.1 and DSD through its optical Toslink output.

Supreme HDMI Amplifier With Equalizer Function

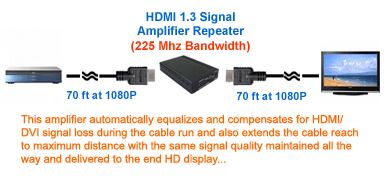

If the output from the HDMI or DVI device is a bit weak or the cable used is not good grade, users can easily see pictures paused, dropped out, pixilated or lines scrolling. This compact HDMI repeater automatically equalizes and compensates for HDMI/ DVI signal loss during the cable run and also extends the cable reach to maximum distance with the same signal quality maintained all the way and delivered to the end HD display.

This unit can be cascaded with other HDMI devices such as HDMI switchers/splitters or HDMI DVI distribution systems for achieving larger-scale setup. The external power adapter is also supplied in the standard package for applications requiring long cable runs like digital signage, information kiosks and so on.

Compliance With New HDMI 1.3 For HD Video/Audio
This device is fully complaint with the new HDMI 1.3 standard. The new HDMI 1.3 increases its single-link bandwidth in order to support the demands of future high definition devices, such as higher resolutions, higher frame rates, Deep Color in both audio and video areas.

In terms of audio, HDMI 1.3 compliance is essential for implementing the new high definition audio format. Any recent version of HDMI can carry legacy Dolby Digital and DTS in bitstream form. However the new HDMI 1.3 adds additional support for new, lossless compressed digital audio formats for Dolby and DTS HD audio. To carry these new HD audio formats, both the input source device and the receiving end must be with HDMI version 1.3 in order to provide the highest sonic performance. This new adopts the new HDMI 1.3 standard so it can provide up to 8 channels of lossless surround sound, giving users the highest quality audio experience same as realistic as seated in the movie theater.

In terms of video, this unit can support digital video formats in Deep Color mode from 25MHz to 225MHz for 36 bits (12 bits/color).  The increased bandwidth in HDMI 1.3 enables higher display resolutions beyond the typical 1920x1080P resolution and improved color depth allowing for more picture quality improvement for the future.

• Multi-purposed HDMI digital to analog audio solution with multi-channel audio decoder built in for  LPCM audio.
• Cost-efficient solution for integrating the new HDMI-based AV equipment into receivers or home theater systems that are not equipped with digital audio decoder through using the multi-channel cable or fiber optic cable connection.
• Supports Dolby 5.1, Dolby Digital, DTS and LPCM 2 channels output through the optical output.
• Supports uncompressed LPCM 7.1, LPCM 5.1 and LPCM 2 channels output through the multi-channel stereo output ports.
• Supports the new lossless digital bitstream for Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio through the HDMI input and output port.
• Supports all HDTV resolutions including 480p,576p,720p,1080i and 1080p. Output resolution follows input.
• Fully compliant with HDMI 1.3, HDCP 1.1 and DVI 1.1 standards.
• Adopts the new HDMI 1.3 design so it can provide users with the highest quality audio experience as realistic as seated in the movie theater.
• Supports HDMI signal amplification and equalization output for repeater function.
• Its built-in amplifier function helps devices regenerate and equalize their HDMI/DVI output signals to ensure clear signal transmission over longer cable runs.
• Supports digital video formats in Deep Color mode from 25MHz to 225MHz for 36 bits (12 bits/color).
• Supports ultra high video amplifier bandwidth up to 2.25Gpbs/ 225 MHz to ensure output of sharp detailed images and maintain the original audio sound quality.
• Integrated HDCP encryption for transmitting protected audio and video content.
• Supports HDMI CEC (Consumer Electronics Control) bypass.

• Home theater integration, conference room and retail stores.
• digital satellite (DBS), HD cable set top box, DTV and HDTV terrestrial services.
• Audio amplifiers, preamp, audio/video receivers with optical and/or coaxial RCA input.
• PS3, Xbox 360, Wii and other HD video game consoles.
• HDMI switchers and HDMI distribution amplifier.
• Plasma TV, LCD TV, DLP/LCD Projector and  projection TV.

• HDMI audio DAC decoder unit
• Power adapter
• User's manual
