Analog Video To DVI/HDMI Converter With External Cable TV Tuner
This new-generation external cable TV tuner unit doubles as a video up converter and switcher.

With the advanced video processor built in, this multimedia unit is aimed at enhancing standard analog video quality to the ultimate digital format and delivers full HD resolutions up to 1080p HDMI or 1920x1200 pixels DVI format with astonishing digital video quality for visual entertainment.

Simply connect your video sources from cable TV outlet, DVD player, video camera, game console, satellite receiver and computer to this unit and select the desired source input for display with sensational picture quality with vibrant color depth and digital sound through the single HDMI cable link.

There are manual push buttons on the converter box for basic functions like power on/off, video input selection, switching between TV channel and audio volume control. Advanced settings like video mode, output resolution, PIP mode, MTS and so on are available through on-screen operation menu using the supplied remote controller.

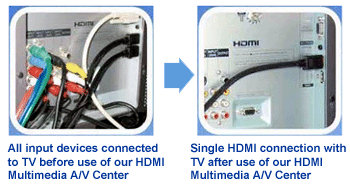

This design can help user streamline their A/V setup without constantly swapping audio video cable connection for those TVs with limited inputs or TVs mounted at hard to reach locations. There will be no more visible cable mess scattering around the living room.

Stand Alone Cable TV Tuner For Digital Flat Monitors
This cable TV tuner is a great add-on device for those HDTV sets without coax RF inputs, flat panel DVI/HDMI monitors or projectors that do not have TV tuner built in either.

The RF coax input of this cable TV tuner can be used for all countries using NTSC for TV broadcast standard. It is able to convert the RF coaxial cable signals into either HDMI and DVI for output. Simply connect the coax cable from the cable outlet on your wall to this unit first. After 5-minute configuration, you can tune to any cable channel and enjoy the shows.

Coax Video Demodulator For CATV Satellite CCTV Systems
This is a perfect RF/coax demodulator for those TVs or desktop monitors without coaxial inputs or broken coax terminals. It also works for other RF coaxial sources such as satellite receivers, CCTV surveillance camera system and so on.

This coaxial to DVI HDMI converter will convert the modulated RF coax signals or analog cable TV signals into digital DVI or HDMI signals with higher picture quality output to any flat panel monitor or LCD TV.

The coax input of this video demodulator can also be used for those satellite receivers with modulated TV2 out from DirecTV, Dish Network and FTA satellite for NTSC regions. Please check the user manual of your satellite receiver first and make sure that the coax output from your satellite set top box can be tuned to channel 3 or channel 4 or other TV channel or contact your satellite TV provider for verification.

Comprehensive Video Audio Inputs
This digital multimedia up converter supports total of 4 video inputs including 1 coax input, 1 HDMI digital input, 1 composite rca input and 1 component video input plus 2 stereo audio inputs.

This device supports a/v inputs from devices such as:

• Analog cable TV in NTSC system.
• Satellite receiver or other STB.
• VCR, DVD players or other media players.
• Video game consoles such as PlayStation,PS2,PS3,Xbox,Xobx 360 and Nintendo Wii.
• Camcorder, CCTV surveillance cameras and all other video cameras.
• Audio/Video receivers.
• DVI or HDMI-based PC or Mac.

Multi-Format Analog Video To DVI HDMI Scaler
With the built-in supreme HD video engine, this digital HDMI video processor is able to accommodate all digital and analog video inputs and up converts them into digital HDMI or DVI signals for optimized image quality and sensational results with the following performance:

• Converting Coaxial Video To HDMI DVI
  This HDMI video processor is able to decode the cable TV channels or the modulated satellite video into HDMI signal up to 1080p or DVI signal up to 1920x1200 pixels for display.
• Converts SD Video To HDMI DVI
  This video up converter can up convert composite video in NTSC or PAL format to HDMI signal up to 1080p or DVI signal up to 1920x1200 pixels for display.
• Converts Component Video To HDMI DVI
  Enhancing the component video output of your DVD, satellite receiver or video game console to sharp pictures with vibrant colors.
• Cross Converts DVI-D HDMI To DVI HDMI
  This top-notch HDMI video processor unit can also up convert or down convert any computer DVI HDMI signals or other digital RGB HD source into selectable HDMI or DVI resolution for the applications needed.

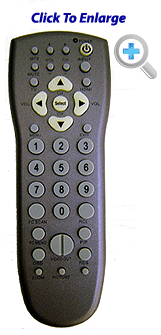

	Remote Controller Close-Up

Advanced Analog To Digital Conversion
This HDMI video scaler uses advanced HD video processor with powerful 3D digital comb filter for digitally encoded images with vivid color depth during A/D conversion. Its auto noise reduction process helps minimize artifacts and other video noises caused by unsynchronized video pluses.

Picture-In-Picture Support
This unit allows users to show TV channels or DVD movie together with the computer screen if a PC is connected to this unit.  With this PIP feature, you can use the computer and watch TV shows or satellite video on the same VGA screen at the same so never miss a show or your favorite sports event !

• Sizeable PIP window: There are 2 sizes for PIP window, 1/4 and 1/16 of the screen size.
• PIP window video playback: If you want to have PIP window inserted to the main video screen, the main video screen needs to be HDMI input or component YPbPr input while the PIP window will be either cable TV input or composite video AV input.
• PIP window location: To adjust the location of PIP window on the screen, press the arrow keys from the remote controller to move the position of PIP window to any preferred location on the screen.

IR Remote Control Extension
This HDMI video scaler is bundled with a IR remote control extension module, which allows this video converter to be put behind your HDTV set, home theater system or inside your TV cabinet for a sleek and neat appearance for your A/V setup and user can still control this device via the remote through this remote extension.

Simply plug the remote control extender to the "IR EXT" port of this HDMI video converter from the back panel and pointing the remote controller of this converter toward the extender probe. So you can install it anywhere as long as the extended IR module is visible across the room.

• Designed to streamline the A/V installation setup by connecting all SD HD devices together and output in one single HDMI or DVI link with the big screen display.
• All-In-1 video format converter and video scaler solution for up-converting all standard video devices including coax cable TV to HD quality.
• NTSC cable TV tuner with HDMI/DVI outputs.
• Great RF coaxial video to HDMI DVI demodulator for cable TV or satellite coax signals.
• Converts analog SD videos to digital signals at supreme high 1080p or 1920x1200 pixels.
• Advanced video processor for vivid color depth during A/D conversion.
• Adopts the latest 3D digital comb filter with premium de-Interlace and noise reduction technology for sharp images.
• Supports Picture-In-Picture mode for users to watch cable TV or DVD movie from a sub video window while satellite video or DVI computer screen being displayed in the main screen.
• When in PIP mode, TV video sub-window can be resized and re-positioned to different location on the monitor screen.

• Selectable digital video output modes with multiple video resolution levels:

  • DVI: 1600x1200,1440x900,1366x768,1280x1024,1024x768,800x600 pixels at 60hz.
  • HDMI: 480p720p,1080P at 60Hz
• Supports all component video inputs including 480i,480p,576i,576p,720p and 1080i.
• Supports all NTSC and PAL video inputs with automatic video mode detection.
• Supports various aspect ratios of 4:3, 16:9, 16:10 screen modes.
• 4 preset color screen modes: Warm/Cool/User Define/Preset to match different displays.
• Selectable screen ratios when in TV and AV Composite mode.
• Adjustable controls of video color elements for brightness, contrast, hue, saturation, color temperature and picture modes.
• Supports MTS for Stereo/SAP/Mono audio modes.
• Full-function remote controller with sleep timer function.
• Supports IR remote control extension.

• HDMI video converter with vertical stand
• Remote controller with remote control extension probe
• 5V DC power adapter
• HDMI cable
• 3.5mm stereo cable
• User manual
