Internet IP Web Video Server for remote monitoring,internet video streaming and security surveillance
4-Channel Web
Video Server box ~ Remote Video Surveillance Station
 This IP-based web video server lets organizations monitor, prevent or respond to emergency situations more effectively and
affordably via the Internet. Internet
video video streaming uses a company's existing network or through public networks to transmit video & audio signals to the remote location, thus eliminating the need for costly, time-consuming dedicated cable installation.
This web server box enables organizations to provide high-impact instruction, communications, seminars and more directly to the desktops of employees, partners and students by delivering live, high-quality video content to desktops, classrooms and meeting rooms over the internal networks.
Standalone remote video solution
without pc operation after being set up.
This means lower cost and much higher reliability. You do not need to dedicate a computer for the sole operation and no worry about MS Windows crashing on you in the late night.
All operations including configuration changes are all done in seconds through
using any standard internet browser.
Diversified and
Centralized Video Surveillance Management
No specific hardware requirement and no extra client software needed, doing away with complicated operating system ! This will reduce the maintenance cost substantially. No more system breakdown on you !

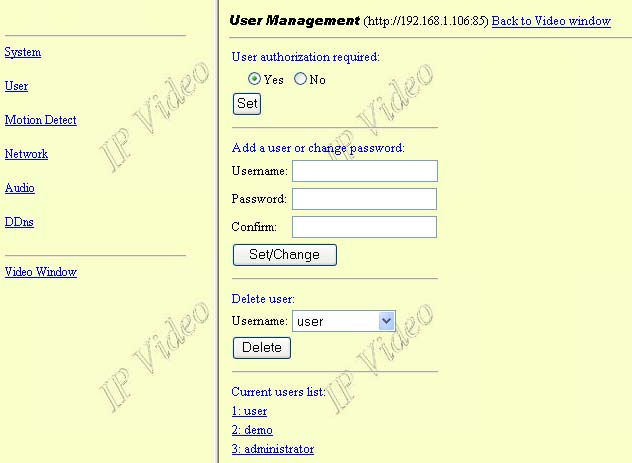

2-layer Web Administration
Control
Administrator can assign authorized access to this web video sever with pre-set
user id and password. Allows for up to 25 users to access the web video server
at the same time. Access log will be generated for report to administrator to
keep track of all accesses from users of anywhere.

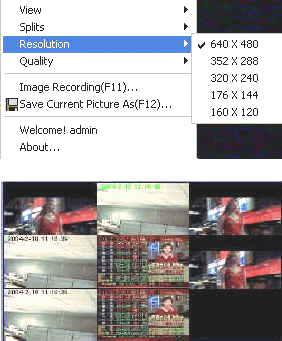

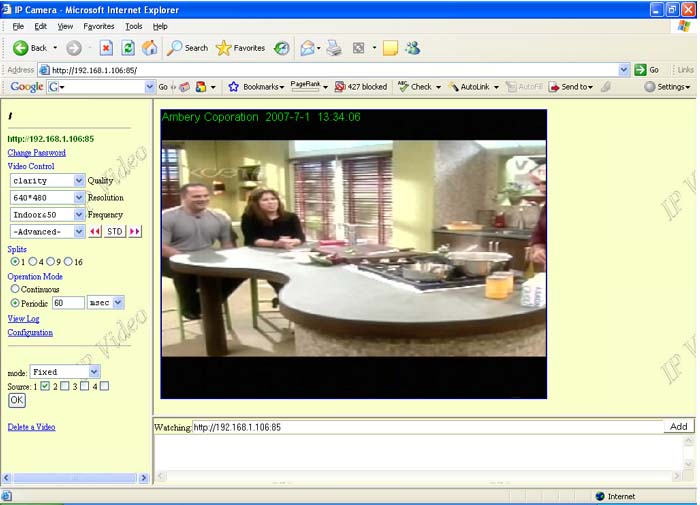

View All 4 Video Channels On One Screen
This web video server supports "Round Robin"
function so the administrator can display all 4 video channels from one
single server box on one screen in rotation order with frame delays because all
4 channels share the same IP address.
For simultaneous display of all 4 video channels,
please use 4 video server boxes so each video channel from each server box has
an individual IP address.
Indoor/Outdoor Remote Monitoring Video Surveillance Solution
Turn any
video camera into web network camera by connecting cameras to this IP video server. This internet video server has "outdoor" frequency option, so the camera/video server can aim at outside. However, this video server can't put outdoor directly. You will need to put the video server in a sturdy enclosure for outdoor use.
Easy Remote Video Recording
Users can also record each video channel or record all four channels in 4 separate
files any time anywhere through a web browser and save the recorded videos in AVI format or Motion JPEG images onto any remote PC hard drive for future viewing. Snapshots of the event (or a series of snapshots) can be defined and sent via Email or FTP.
No special software needed to be installed on the client side.

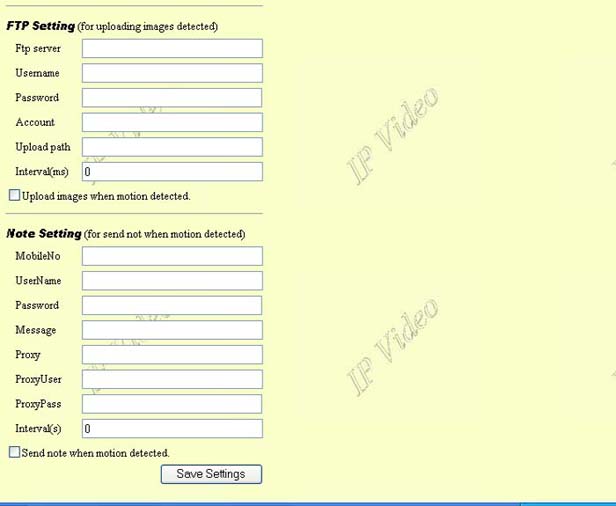

Motion-Detection and Alarm Trigger
Built-in motion detection for security surveillance with no extra cost. This
web video server can be configured for motion detection which can archive images or alert you via email if
motion detect setup is triggered.
The built-in motion detection mechanism works by comparing the current
picture frame with last
frame. The alarmed event is triggered based on a sensitivity level the
administrator select, The event can be emailed automatically to the
manager or post the images to assigned FTP server location.

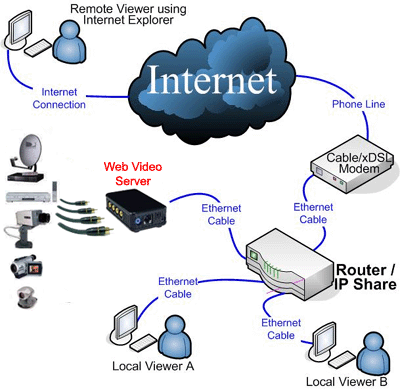

Intranet Video Broadcast / LAN Video Streaming
Looking at the
consumer video entertainment aspect of this product, this web video server lets users stream live video from cable box, satellite receiver, VCR/DVD player, TV game or camcorder within your network so
every room in your house or your organization with a networked PC can enjoy the same videos playing from the source too ! As for the internet live video broadcasting, the performance depends on the internet speed and bandwidth.
-
Video surveillance for home and business
needs
-
Enterprise video training for employees or educational training
-
Online instruction sessions, communications, seminars directly to the desktop computers of employees, partners and students through the existing intranet
network.
-
Multimedia video & audio streaming & broadcasting for entertainments.
-
Retail store security monitoring
-
Public Safety / Traffic Monitoring
-
Day care center monitoring & remote nursery care
-
Visual verification of remote equipment
-
Warehouse & Factory Control
-
Any other remote video broadcasting, monitoring
and security surveillance

-
Standalone Linux-based web video solution, no PC is required for its operation.
Lower cost with much higher reliability.
-
Turns any type of video camera
into a IP network Camera.
- Access live video streaming from 4 different video
sources/camera views
from anywhere using web browser.
- View all 4 video channels on the same screen with round robin feature ~ displays in rotational
order with frame delays.
-
TCP/IP network video &
audio control
-
Multi-user password and access security setup with 2-layers username & password protection.
-
Remote video recording and snapshot control via any web browser and save the recorded video images or clips to the local hard drive in AVI, JPEG or MJPEG video format.
-
Password protection, Supervisor password system for you to decide who is authorized to browse the camera, for E-mail and FTP alert.
-
Configuration changes are done through a web browser so there's no software to learn and no browser plug-ins required.
-
Color adjustment: Brightness, Contrast, Hue, and Saturation
-
Motion detection support with three sensitivity levels.
-
Real time motion detection
trigger configurable by users and supports upload images to the pre-set FTP & emails.
-
Easy network configuration and
access administration controls through any web browsers at any remote location at any time.
-
Firmware online upgrade
-

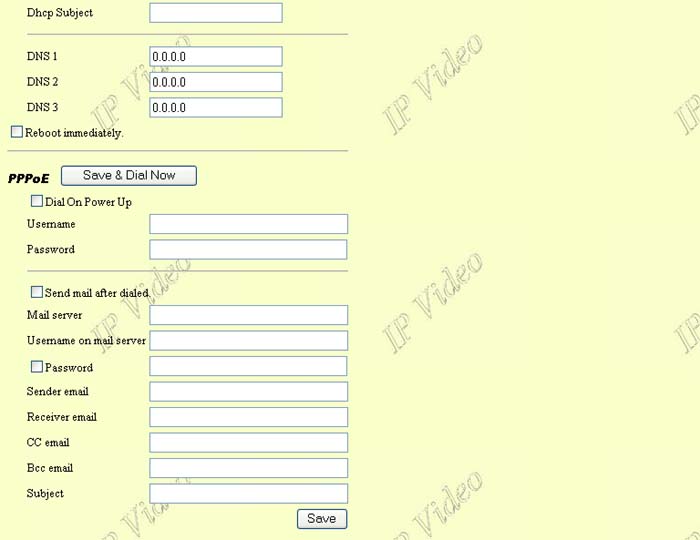

DNS Support - Fixed IP, DHCP, PPPoE and DDNS.
-
Support
Network Protocol - HTTP, TCP/IP, UDP, RARP, PING, DNS,
DDNS, ARP, DHCP, BOOTP or PPPoE.
-
Support Java Applet and Active X control.
-
IPEdit
management software
to support multiple
video/cameras from different sources/areas.
-
Work with MSN
& Yahoo
Messenger, AMCAP, and WMCAP & VIDCAP program.
| Video
Server Hardware |
- CPU: 32 Bits RISC Processor.
-
Linux OS.
-
LED lights to indicate power and network status.
|
| Connectors |
- 1 RJ-45 Ethernet network
port.
-

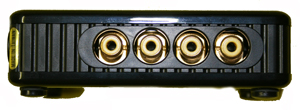

4 Composite(RCA) video ports.
-
1 3.5mm mini stereo
audio jack.
|
| Web-based Configuration Control |

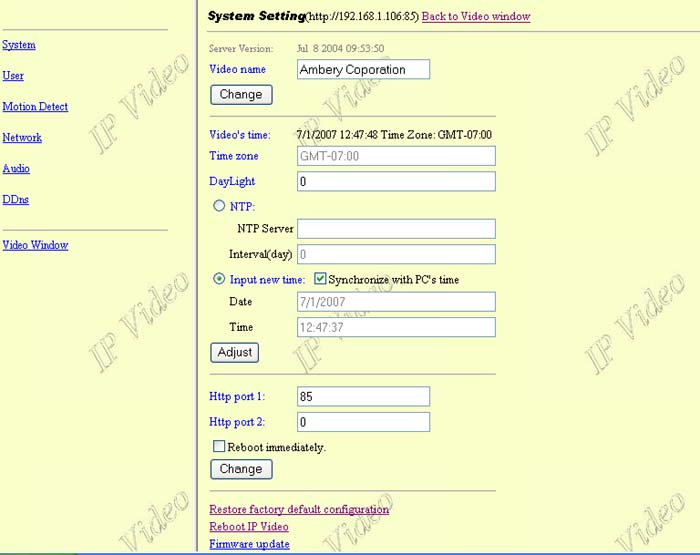

- System setting
 .
-
User access security management setting.
- Motion Detect/Security setting

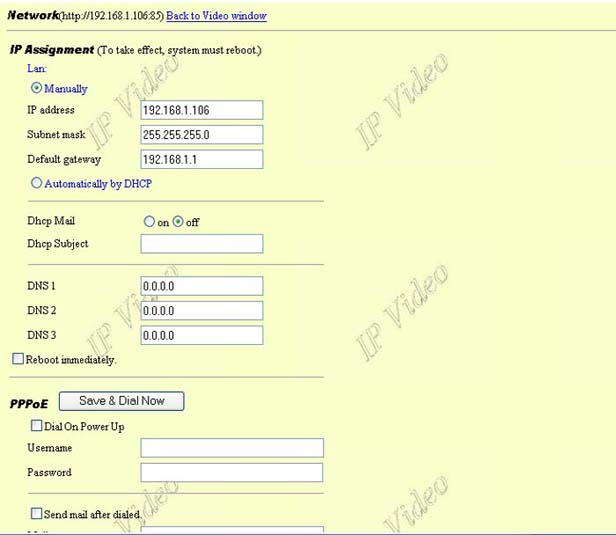

Network setting.
- Video Channel source setting for fixed channel or channel rotation.

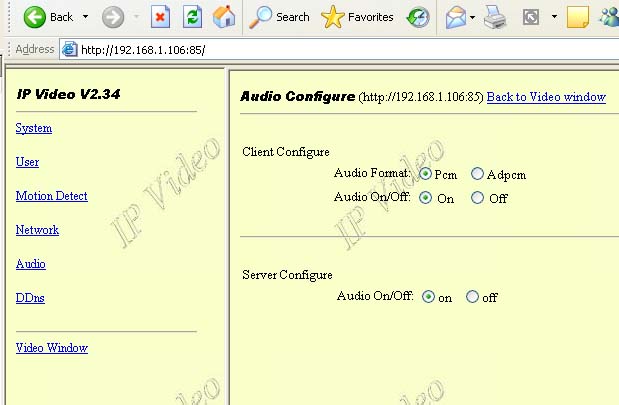

- Audio configuration for audio format setup, client/server audio setting and audio on/off.
- DDNS setting for dynamic DNS setup
Users access statistics and logs
System tool for software maintenance and update.
|
| Network
Interface |
|
| Video
Display Mode |
- Continuous video display.
- Periodic video display in pre-set sec or msec.
|
| Video
Quality CNTL/ Image Compression |
- Image Frame Rate up to 25 fps @ 640x480.
- Video Compression: JPEG Image, AVI & MJPEG video clips.
- Video Quality Level: 5.
- Video Adjustment for Saturation, Hue and Sharpness.
- Resolution: 640×480, 320×240, 352×288, 176×144.
|
| Protocol
Support |
- TCP/IP, ICMP, ARP, SMTP, HTTP, FTP, PPPoE, DHCP, DDNS
|
| Audio
Support |
|
| User
management |
- 2 Layers Username &
Password Protection.
|
| Motion
Detect |
- 3 Level Sensitivity Detection.
- Alert / Record via E-Mail or FTP When Triggered.
|
| Snap
Shot Support |
Yes |
| DDNS
Support |
Yes |
| System
Requirements |
- Operation system: Windows 98/Me/NT/2000/XP or Linux.
- Browser: Microsoft IE5.x, 6.x or above, or Netscape Navigator 5.x or
above.
|
|
